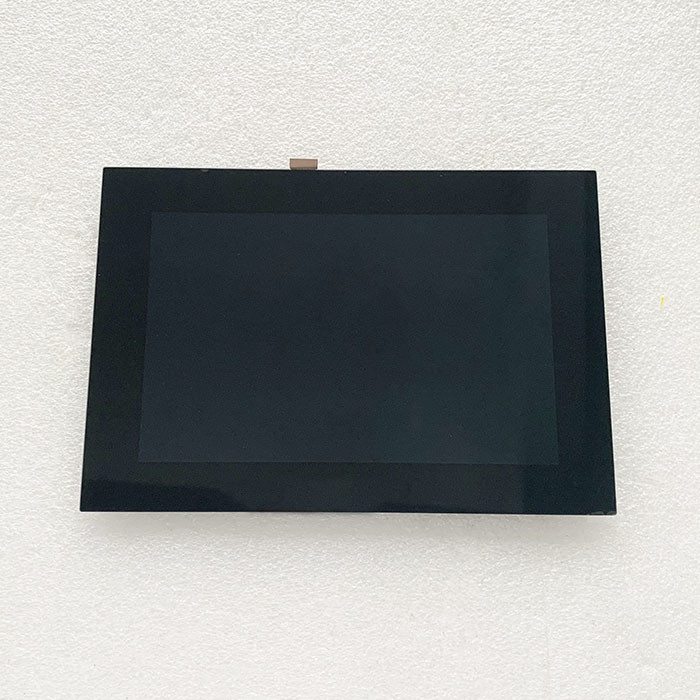

2.95mm TFT 5 Inch Optical Bonding Touch Screen For Currency Counter
2.95mm TFT 5 Inch Optical Bonding Touch Screen For Currency Counter
2.95mm TFT 5 Inch Optical Bonding Touch Screen For Currency Counter 2.95mm TFT 5 Inch Optical Bonding Touch Screen For Currency Counter 2.95mm TFT 5 Inch Optical Bonding Touch Screen For Currency Counter
Contact Now

2.95mm TFT 5 Inch Optical Bonding Touch Screen For Currency Counter

Price : negotiable Packaging Details : carton
Delivery Time : 5-8 days Payment Terms : L/C, T/T, Western Union
Supply Ability : 50000~100000 pieces/Month
Place of Origin: Suzhou, Jiangsu, China Brand Name: Master Touch
Model Number: MST-TPM-5-TFT

Detail Information
Structure: Touch Panel+LCM (Optical Bonding) Touch Points: 5
Controller: ILI2130 Converter Board Interface: IIC
LCD Size: 5'' LCD Outline Dimension: 75.9*120.7mm
Touch Panel Outline Dimension: 90*156.5mm Operation Temperature: -20℃~70℃
High Light:

5Inch Optical Bonding Touch Screen

,

156.5mm Optical Bonding Touch Screen

,

2.95mm TFT 5 Inch Touch Screen

Product Description



5 Inch Optical Bonding Touch Screen Touchable LCD Display screen for Currency Counter



1. Product Description



Master Touch 5 inch touchable LCD display screen suiting to self-service currency counter is the lamination of touch panel and the LCD module through optical bonding technology with OCA or LOCA (Whether OCA or LOCA is chosen depends of the application of the product or the LCD used.) that fills air gaps between components in LCD displays and the touch panel.

Optically clear adhesives are contaminant free resulting in improved bubble resistance on glass or plastic film cover laminations exposed to high temperature and high humidity: a common requirement in automotive display screen fabrication. Optical clear adhesives are ideal for LCD flat panel displays, touch screens, transparent graphic overlays, and other devices requiring an optically clear bond.



2. Genaral Specification



2.1 LCD



Size 5 inch
Resolution -
Outline Dimension 75.9*120.7
Active Area 64.8*108
Viewing Direction ALL
Operating frequency 60Hz
Driving Voltage 3.3V (Typ.)
TFT thickness 2.95mm



2.2 Touch Panel



Outline Dimension 90*156.5 mm
View Area 64.2*107.4(5 inch) mm
TP thickness 1.45 mm
Total 4.6 mm
Touch IC ILI2130 --
Number of touchpoint 5 points
Number of button -- -

Interface information driven plate

 IIC -
The active information -- --
The type of Bonding with LCD Optical bonding
Operation Temperature -20℃~70℃ ℃

Storage

(cannot exceed 6 months)

Temperature: 23±3℃ (Before installation)

Humidity:40%~70%RH

 ℃
Temperature: -30~80℃ (After installation) ℃


2.3 Optical Spec.

Item

Content
Transparency 85±10%



2.4 Electrical Spec.



ESD Touch Side (Touch) 4kv
ESD Touch Side (Air) 8kv



3. Reliability



Item Specifications Remark

High Temperature Operation

 70ºC, 48hrs --
Low Temperature Operation -20 ºC, 48hrs Non-condensing

Operating Temperature/ Humidity

 60ºC/90%RH, 500hrs Non-condensing
Thermal Shock

-30 ~ 80℃, 60 mins/cycle, total

48 cycles

 --



4. Drawing



2.95mm TFT 5 Inch Optical Bonding Touch Screen For Currency Counter 0



5. Inspection



Equipment/materials: light box, ion fan, humidifier, film card, alcohol/ethyl acetate, finger cover, dust-free cloth, Vernier/digital caliper.

Inspection environment: 30cm ± 5cm from the product, temperature: 22 ± 2 ℃; humidity: 40% ~ 70% RH; cleanliness: Level 10000.

Inspection angle: vertical rotation angle: ± 30 °, from top to bottom; horizontal rotation angle: ± 30 °, from left to right.

Inspection illuminance: fluorescent lamp inspection area illuminance: 150

0-1800lux; table lamp inspection area illuminance: 1500-1800lux; It is convenient for internal uniform illumination requirements.

Background color: Black/white.

Inspection time: the inspection time of one piece of product shall not exceed 15 seconds.



2.95mm TFT 5 Inch Optical Bonding Touch Screen For Currency Counter 1



6. Details



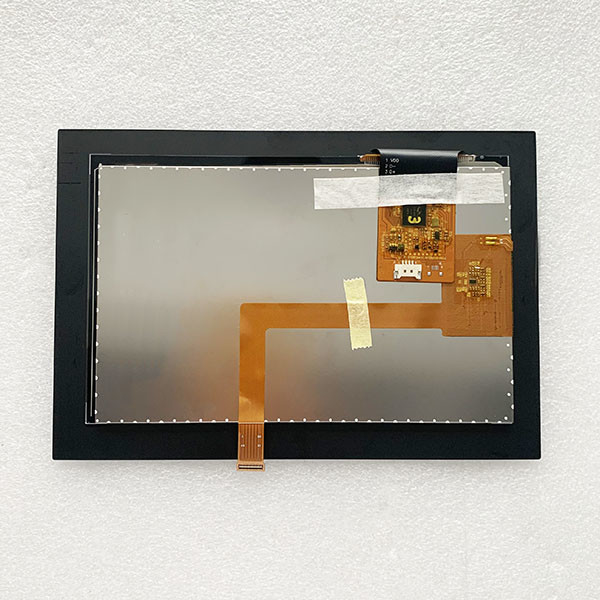

2.95mm TFT 5 Inch Optical Bonding Touch Screen For Currency Counter 2



7. FAQ

2.95mm TFT 5 Inch Optical Bonding Touch Screen For Currency Counter 3
